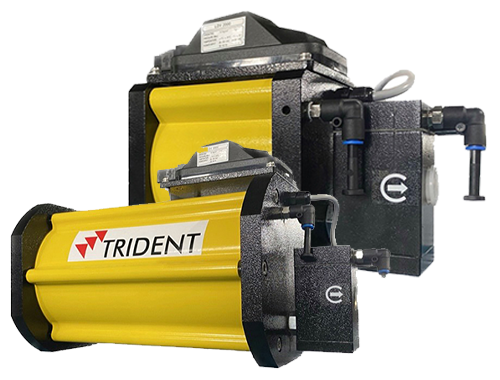

Condensate Sensing Drain Valve – Series LDV
Condensate sensing automatic drain valves are designed to efficiently remove condensate without any loss of compressed air, delivering significant energy savings. With advanced sensor technology and a fault-tolerant design, these valves ensure reliable operation even in the event of sensor failure.
Salient Features
- Electronic Level Control: Drains condensate accurately while preventing air loss
- LED Display: Clear indication of all valve functions
- Test Switch / Manual Drain: Allows function testing anytime
- Intelligent Controller: Detects valve or probe failure and responds automatically
- Noise-Free Operation: Air is not discharged during drainage
- Fault-Tolerant System: Ensures continuous operation under all conditions

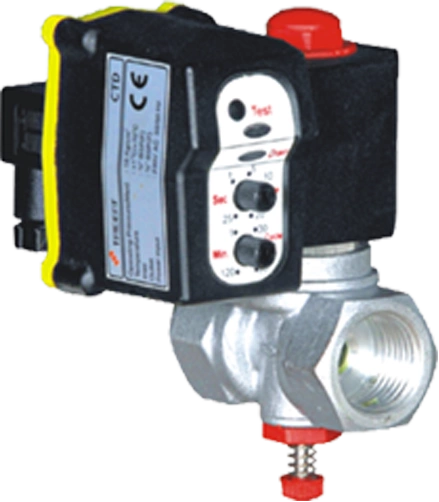

Drain Valve-Timer Type - Series CTD
The Trident Series CTD timer controlled drain valve is a compact and reliable solution for automatic condensate removal from compressed air systems. Operated by a precision timer, the valve periodically discharges condensate and is specially designed to handle dirty liquids and all types of condensate without clogging.
These direct acting valves feature a 4 mm orifice and adjustable drain and cycle times for flexible operation. A manual flush button allows instant draining when required, while an innovative mechanical cleaning pin enables easy orifice cleaning during maintenance, ensuring consistent performance and extended service life.
Salient Features
- Mechanical Clean Function: Built-in cleaning pin for easy removal of debris and contaminants
- Proven Reliability: Designed for continuous and demanding applications
- Digital Electronic Circuit: Ensures accurate and consistent timing control
- Waterproof IP55 Enclosure: Suitable for outdoor installations
- Adjustable Drain & Cycle Times: Allows fine tuning as per application needs
- Manual Flush Button: Enables quick removal of excess condensate
- CE Marked: Complies with international safety and quality standards

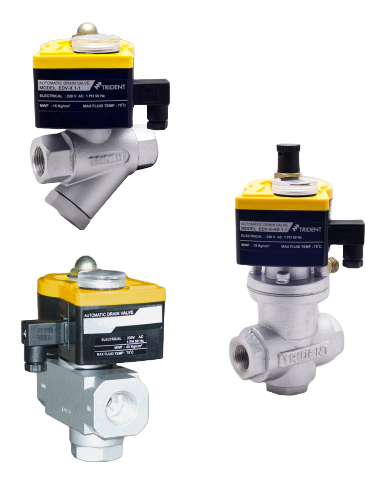

Drain Valve Timer Type Series- EDV-X
The Trident Series EDV-X timer controlled drain valve is engineered for efficient removal of sludge and rust laden condensate from compressed air systems. Operated through a reliable timer module, the valve ensures periodic and consistent condensate discharge even in harsh operating conditions.
Equipped with power and drain status indicators, the EDV-X allows easy monitoring of valve operation. The EDVXSS40 model offers an extended adjustable cycle time of up to 32 hours, making it ideal for heavy duty and intermittent applications.
Salient Features
- Over 2 lakh installations, proving long term reliability
- Specially designed for sludge and rust laden condensate
- All digital electronic circuitry for precise and consistent control
- Adjustable ON and OFF timing
- Power & Drain status indicators for easy monitoring
- Extended cycle time up to 32 hours (model specific)

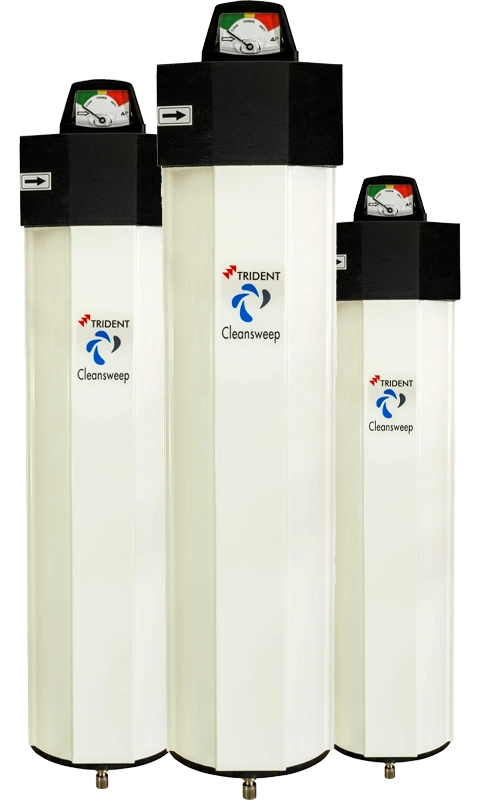

Cleansweep Microfilters
Oil and water contaminants in compressed air can exist in both liquid and vapour forms, making effective filtration essential to protect equipment and end products. Trident coalescing and activated carbon air filters are designed to remove liquid oil, water, particulates, and oil vapours, ensuring clean, high quality compressed air.
The coalescing filters use borosilicate micro glass fibre media for efficient oil and water separation, while activated carbon filters eliminate oil vapours and odours for superior air purity.
Salient Features
- Very low installation clearance for flexible installation
- Efficient oil coalescing and particulate removal
- Wide flow range from 20 to 1810 m³/hour
- Particle removal up to 0.01 micron
- Activated carbon element for oil vapour and odour removal

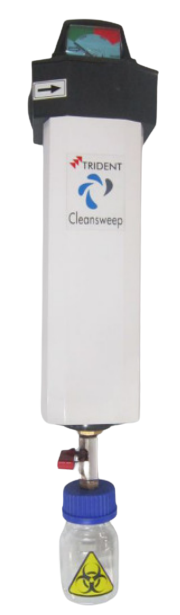

Medical Vacuum Filter
Trident Cleansweep Medical Vacuum Filters are designed to remove liquid, solid, and bacterial contaminants from the suction side of vacuum pumps, ensuring safe operation and preventing biological contamination of equipment and surrounding environments. With a low pressure drop and medical grade construction, these filters are ideal for hospitals, pharmaceutical laboratories, dental clinics, and other critical healthcare areas.
Installed on the suction side of the vacuum pump, the system captures biological fluids in a transparent, removable drain flask for easy inspection, cleaning, and sterilisation. The filters deliver exceptional efficiency, exceeding HTM 2022 requirements when tested as per BS 3928, ensuring reliable protection in infectious disease units.
Salient Features
- Borosilicate filter element with 99.995% efficiency
- Fully compliant with Health Technical Memorandum (HTM) 2022
- Lightweight, corrosion protected aluminium body
- Differential pressure gauge for timely filter replacement
- Sterilisable transparent drain flask for biological fluid collection
- Vacuum flow range: 850–7504 litres/min (30–265 scfm)
- Available in 1” to 3” pipe connections
